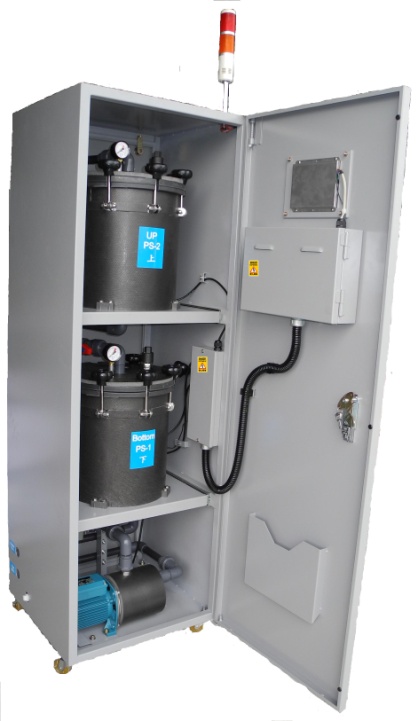

名称:Fountain Solution Fine Filtration System
型号:TS-09DSF
主要特点:

基本配置:

应用领域:

 Going Green and Standardization

Tungshung-The Fountain Solution fine filtration system is the best choice to help your operator achieve stable water balance. Tungshung reduces the usage of alcohol, working towards alcohol free printing. The operators work at a better working space and healthy working environment.The ROL by saving from reduced usage of alcohol dampening solution wastage and improved productivity and quality.

REDUCE

With Dampening Solution fine filtration system, the interval between replacements can be reduced hence resulting in minimum down time, reduced maintenance cost and tremendous improvement in productivity over a period of time.

Reduces the usage of alcohol, wording towards alcohol free printing and Reduces alcohol contamination of the air inside the working space and therefore, a healthy working environment .

 QUALITY

Stable water balance therefore, minimum color difference for long-run job.Stable PH value and conductivity of dampening system working towards a easy standardization processes.

COST SAVING

Prolong the life of sensors and electronic devices in the system and reduces maintenance cost .  Prolong the life of rollers and blanket.



Model

TS-09DSF

Filter Type

Multilayer Fold

Dimension

L54cm*W54cm*170cm

Weight

118Kg

Power Consumption

0.45KW/0.6hp

Voltage

50/60 Hz, 220/240

Flow rate

1-5m3/H

H Max

7.5~29
